Rotating Union

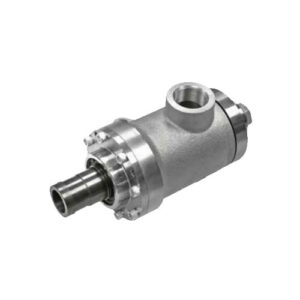

H Series Steam and Hot Oil Unions
- Monoflow and duoflow design
- Self-supported rotating union
- Convex seal ring better suited to handle mechanical and thermal shock
- Two widely-spaced graphite bearings
- H57 – H127 optional with sight glasses in the end cap for visual inspection of condensate removal
- Seal wear indicator allows preventive maintenance
- Flanged or threaded rotor available
- Cast iron housing
- Stainless steel rotor
- For steam and hot oil applications in paper, plastic and textile industries and open gear paper machines
Download Data Sheet

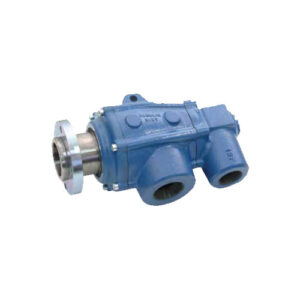

HPS Series for High Pressure Steam Service in Corrugators
- Monoflow and duoflow design
- Self-supported rotating union
- Seals and bearings made of special Carbon Graphite
- Convex seal ring better suited to handle mechanical and thermal shock
- External mechanism to adjust siphon pipe through end cap
- Nickel-plated front and rear end cap
- Nickel-plated ductile iron housing
- Stainless steel spring
- Heavy duty steel rotor design
- Dual bearings for extended service life
Download Data Sheet

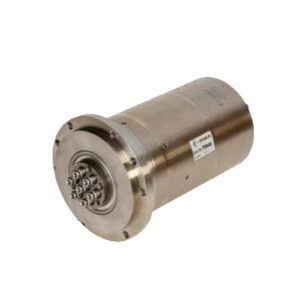

Hybrid-Multi-Passage Series up to 10-Passages for various Media
- Independent channels for various applications, e.g. clamping/ unclamping, tool clamping, cooling and work piece sensoring
- Combination of various sealing technologies for compact design, high pressures for hydraulic and coolant applications and high flow
- Special balanced sealing technologies for low temperatures and long life
- Various installation options for easy and fast installation through media plug-and-socket connection (DEUBLIN tubes)
Download Data Sheet
Ladle Turret Union
- Ladle turrets require complex, heavy-duty multi-passage unions that support the hydraulic lifting of the ladle for each pour of molten metal. Deublin Ladle Turret Unions accommodate multiple media including hydraulic oil, argon, air and water.
- Typical number of ports: up to 26.
Download Data Sheet
