Rotating Union

  • Around-The-Shaft Unions for Air or Hydraulic Service
    • Single or multi-passage
    • “Controlled leakage” can be vented or channeled to reservoir
    • Available for shafts up to 8″
    • Capable of handling high speed and pressure
    • Custom designed for specific application
    Download Data Sheet

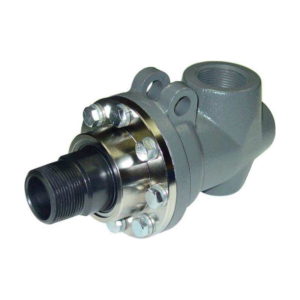

  • BC-54000 Steam Fixed Syphon
    • Two widely spaced Carbon
      Bearings provides greater
      support to the siphon pipe
      and hoses.
    • Carbon Seal placed under
      compression add strength and
      shock resistance. Joints lasts
      longer.
    • External seal wear indicator
      allows for planned maintenance reducing expensive
      downtime.
    • Hardened sleeve and nickel
      plated end cap provide
      exceptional life at high
      pressure.

    Specification

    Temperature

    +406°F (+208°C)
    Sizes 1/2” to 1-1/2”

    Pressure 250 psi (17.2 BAR)
    Sizes 2” to 3”

    Pressure 225 psi (15.5 BAR)
    Download Data Sheet

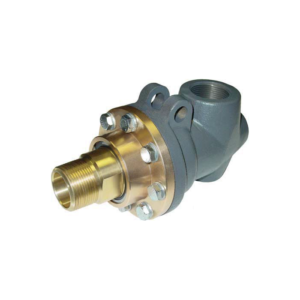

  • BC-54205 & 206 Rotating Syphon
    • Two widely spaced Carbon Bearings provides greater support to the siphon pipe and hoses.
    • Carbon Seal placed under compression add strength and shock resistance. Joints lasts longer.
    • External seal wear indicator allows for planned maintenance reducing expensive downtime.

    Specification

    Bronze Trim

    Sizes 1/2” to 3”
    Ferrous Trim

    Sizes 1/2” to 3”
    Download Data Sheet

  • Bearingless CCM Union
    • monoflow and duoflow design
    • in-the-shaft mounted
    • flanged housing or mounted with retaining plate
    • balanced mechanical seal
    • seal combination: Silicon Carbide/Silicon Carbide
    • brass housing and elbow
    • stainless steel rotor and supply pipe
    • full-media flow
    • easily field repairable
    • no internal bearing
    Download Data Sheet
