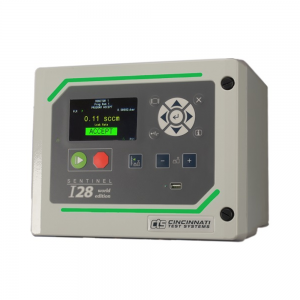

The Sentinel I-28 is the world’s most advanced multi-functional test instrument on the market. The I-28 features a standard manifold design tested with over 40,000,000 cycles. CTS pairs this manifold with a new high performance transducer that reduces test cycle and improves accuracy and repeatability.
New Product Enhancements

• High contrast 24 bit color TFT display
• XY Graphing (pressure, loss, or flow)
• Illuminated test status bars
• External Conductivity
• Enhanced mass flow performance
• Standard Flow ranges from 0-15 sl/min @100 psig – Others available
• Optional Low flow manifold (0.7 cc manifold volume)
• Multi-point calibration on electronic regulators

Multi-test Configurable For Any Test Requirement

• Pressure decay
• Vacuum decay
• Burst test
• Ramp to event
• Rate of change
• Pressure drop
• Proof test
• Mass flow
• Volumetric
• Differential pressure decay
• Occlusion

Advanced Communication

• Ethernet
• Email
• Mobile text
• RS232
• Barcode
• USB mass storage device

Automatic Calibration And Auto-Setup

• Ensures accurate results
• Easy operation

Environmental Drift Correction

• Adapts to changing conditions, including temperature

Tooling Control

• 12 inputs/12 outputs with up to five programmable tooling motions

Data Storage

• Expandable through USB port
• SPC data tracking for part traceability

Smaller – More Compact Design

• 12 W x 9.25 H x 8.75 D
• Modular pneumatic and control packages

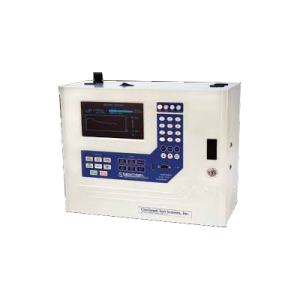

The Sentinel M24 is a versatile leak test instrument that provides industry leading leak test performance. This Sentinel model features expanded capabilities that provide control for a single station or up to four independent stations. The M24 provides enhanced operator interface as well as broad and dynamic communications capabilities.

• Performs very repeatable, high-resolution (0.00001 psi) tests
• Quik Test function reduces test cycle time up to 80%
• The high flow valve option reduces cycle times by filling and exhausting the part up to five times faster
• Auto calibrates and corrects for temperature changes
• Simplifies part change
• Saves initial integration and maintenance costs
• Compact enclosure: 16″w x 14″h x 8″d
• Modular design
• Includes tooling control functions in instrument
• 4 inputs/4 outputs per test for tooling and process functions
• Brilliant VFD graphic display
• Links directly to factory network and other communication through Ethernet link, RS232 and RS485 links, e-mail alert messages to key process personnel or beams data to PDAs

Multi-test configurable test requirement

• Single or Multi Step Proof/UL Test
• Pressure/ Decay – ΔP
• Part Evacuation with Vacuum Decay – ΔP/ΔT
• Gross Leak Fill – with Pressure Decay – ΔP/ΔT
• Fine Leak Fill – with Pressure Decay – ΔP/ΔT
• Tracer Gas Reclaim – Vent
• Capillary Test
• Water Test
• Part Post Evacuation
• N2 Back Fill or Part Clean Cycle

Advanced Test Configurations

• Tracer Gas Accumulation Mode
• Hard Vacuum – No Chamber Valve Control
• Hard Vacuum – Chamber Valve Control
• Sniffer Single Test Point
• Sniffer Test with Multiple Test Points
• Sniffer Clam Shell Mode
• Available with Multiple Test Points

Tracer Gas Mixing Options

• 100 % Tracer Gas
• 75% Tracer / 25% N2 or Shop Air
• 50% Tracer / 50% N2 or Shop Air
• 25% Tracer / 75% N2 or Shop Air

Advanced Communication

• Ethernet
• Email
• Mobile text
• RS232
• Barcode
• USB mass storage device

Auto Calibration

• Ensures accurate results
• Easy operation

Environmental Drift Correction

• Adapts to changing conditions, including temperature

Tooling Control

• 6 inputs/6 outputs with up to five programmable tooling motions

Data Storage

• Last 5,000 tests stored in on-board memory, expandable through USB port
• SPC data tracking for part traceability
• Instrument backup/restore and cloning capability

Compact Design

• Bench Top – 11.25” high x 9” wide x 15” deep
• Modular manifold – mounted valves and
• Transducer(s)
• Wall Mount – 16” high x 14” wide x 8” deep
