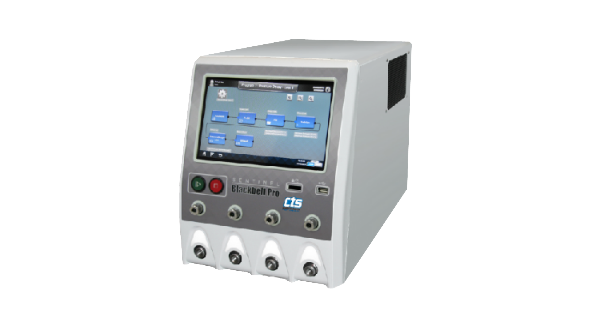

Black Belt Pro

MULTI-PORT, MULTI-TEST, MULTI-CHANNEL; CONFIGURABLE FOR LEAK, FLOW, PRESSURE, AND VACUUM TEST REQUIREMENTS

  • Pressure/Vacuum decay-pressure change
  • Pressure/Vacuum decay-with certified leak standard
  • Pressure/Vacuum decay-pressure change/time
  • Occlusion test (vacuum or pressure test)
  • Mass flow direct flow reading
  • Mass flow continuous direct flow reading
  • Mass flow with certified leak standard

INSTRUMENT HIGHLIGHTS

  • This instrument is highly configurable and very flexible
  • 4-port independent, synchronous and asynchronous test capability
  • 1, 2, 3, or 4 port sequential operation
  • Multi-test dependence programming
  • Store up to 999 part programs
  • 200,000 test sequencing
  • Recall up to 1 million test records from internal memory
  • Provide digital I/O control 18 inputs / 18 outputs with enhanced Tooling Control
  • “SmartKey” digital ID for 21CFR Part 11 tracking

SELECTABLE TEST PARAMETERS

  • Quick Test
  • Test Pressure Level Compensation (selectable on/off)
  • Adjustable Environmental Drift Correction per test program

ADVANCED PRODUCT FEATURES

  • Wall mount configuration 16.25” W x 13.5” H x 10” D
  • Benchtop configuration 11” W x 12.5” H x 17” D
  • Powerful 32-bit processor & (8) 24 –bit A/D converters
  • Language neutral color LCD, 9.25” touch screen, 480 x 272 operator display
  • XY Graphing (pressure, loss, or flow)-English, Chinese, Korean, Spanish
  • On-screen test status identifies Pass/Fail/In-test/Error
  • Benchtop has independent port LED Pass/Fail; lighting
  • Barcode ready input RS232 Alpha-numeric string stored with test result.
  • Modular pneumatic and control packages
  • Single test channel

STANDARD FEATURES

  • Auto Calibration includes mass flow leak standard certified for pressure and flow
  • Transducer zero and span are automatically reset during auto calibration
  • “Performance factor” calibration feedback ensures accurate results
  • Self Test isolates the test instrument pneumatics to verify a “no leak” condition
  • Features ensure accurate results and easy operator setup and troubleshooting
  • Firmware validation document included

TOOLING CONTROL

  • 18inputs/18outputs with programmable tooling motions with feedback
  • Part marking control
  • Tooling I/O is externally connected
  • I/O 24 VDC – I/O cables supplied with instrumentation

TEST DATA STORAGE

  • 1 million part test results including Date / Time / Barcode / Test Results
  • Selectable part serialization in the test data stream
  • SPC data tracking for part traceability
  • Expandable download through USB port

ELECTRICAL REQUIREMENTS AND CONNECTIVITY

  • 88-264 VAC, 47-63 Hz or optional 22-26 VDC
  • RS232(2)
  • Telnet (2), (Ethernet IP future)
  • Email Alerts
  • “SmartKey” Digital ID for 21CFR Part 11 tracking
  • Barcode ready (RS232)
  • Mobile text
  • (3) USB mass storage device for backup, restore, and reports (FAT32, USB1.0,1.1,2.0)
  • ¼” Colder fitting for test line attachment
